| | Engine type | single cylinder, air-cooled, 4-stroke
|
Ignition mode
| CDI | | Compression proportion | 8.9: 1 | | Start mode | electric
| Fuel tank capacity
| 10.5L | Transmission mode
| chain
| | Power | 14.7kW - 8,000rpm
| Max. torque
| 20N.m - 6,000rpm
| | Min. ground clearance | 120mm
| | Max. speed | 85km-h
| Power source
| 12V, 20Ah |
| Transmission: | 4 forward gears, one reverse gear, manual clutch
| | Cylinder size | 78 x 61.2mm
| Engine oil
| 1.3L
| Lubrication
| press splash
| Displacement:
| 292mL
| Parking trig
| mechanical lock
| Gas cylinder number
| 1
| Front wheels
| 21x 7-10
| Rear wheels
| 20 x 10-9
| Break type
| disc - disc
| Front hanging
| double arm-swing
| Rear hanging
| integral
| | Product dimensions | 1,850 x 1,200 x 1,160mm | Wheelbase
| 1,220mm
| Height of seats
| 860mm
| Dry weight
| 190kg
|
Load capacity
| 150kg
| Climbing degree
| 20
| Min. turning radius
| 3,000mm
| Max. number of riders
| 1
|
|

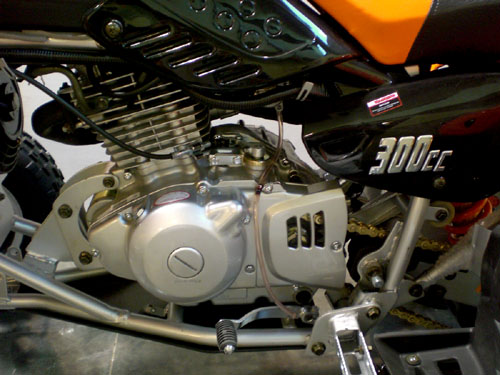

300 cc 4-stroke air cooled engine

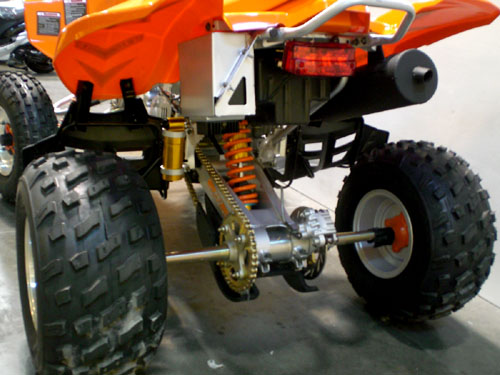

Transmission: Chain drive, 5 Gears & Reverse
Max Speed: ?85kmh Front & Rear disc brake system.
|
