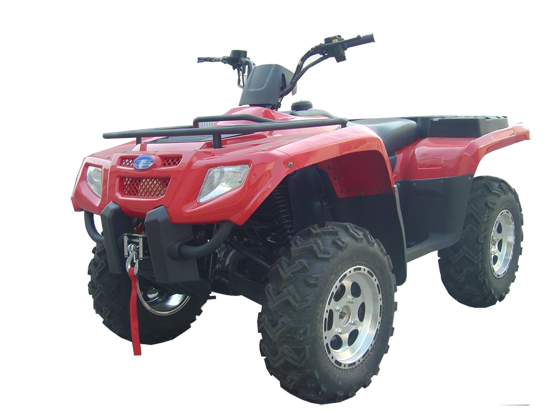

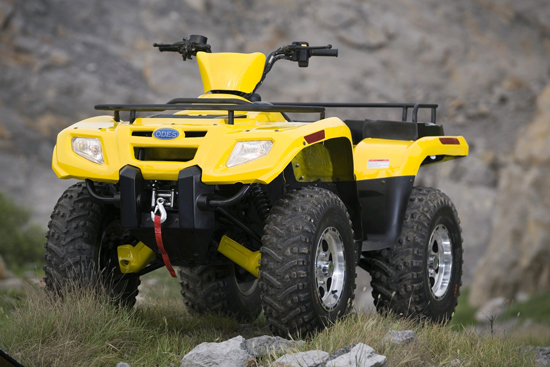

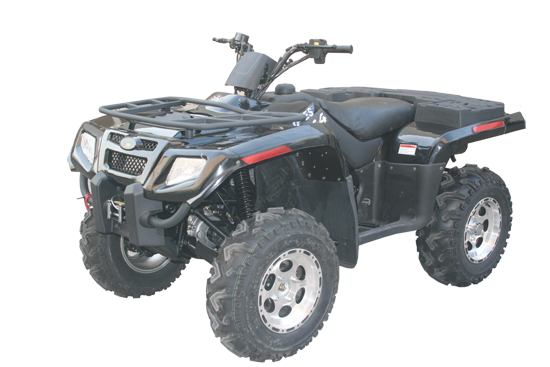

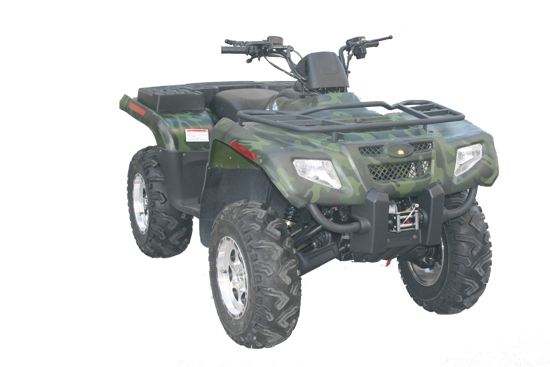

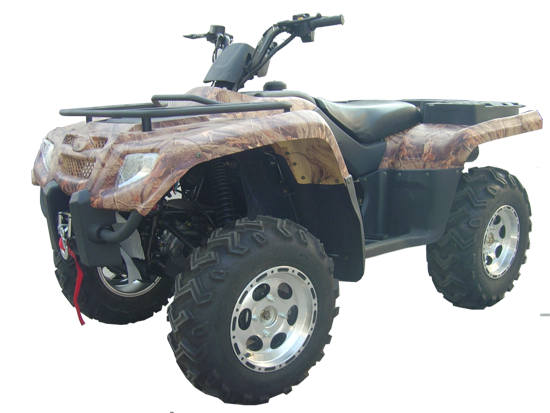

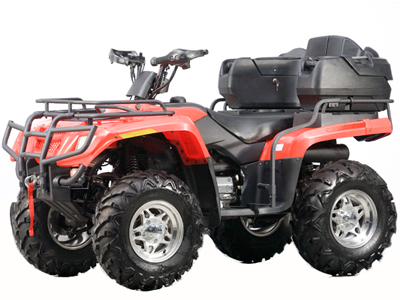

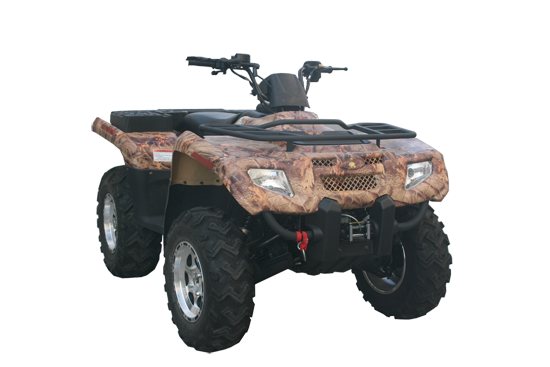

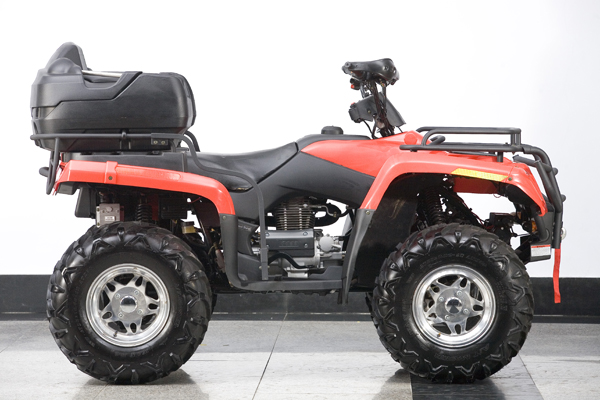

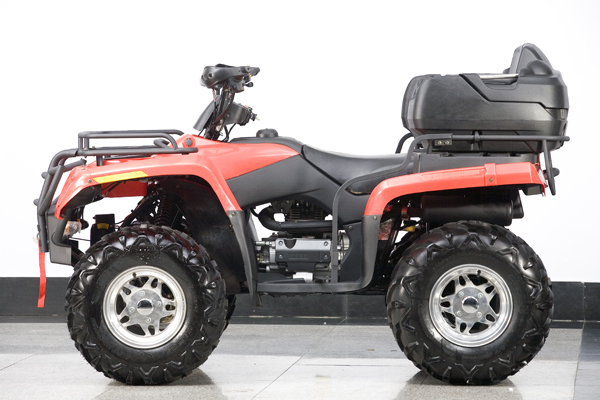

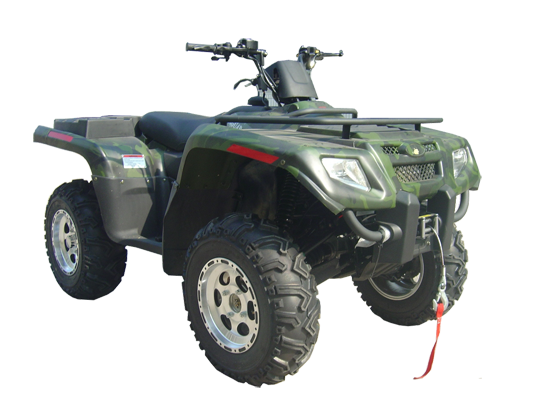

400cc Utility ATV
|
Displacement 400cc
|
MFM-ATV-400C Utility
Starting from : $3200.00
|
|
| SPECIFICATIONS |
Engine - Drive Train
|
Engine Type
|
359.1cc 4-stroke, single cylinder
|
Carburation
|
Y
|
Max power
|
16.1hp - 5200rpm
|
Cooling System
|
Air Cool + Oil Cool
|
Transmission
|
Automatic + reverse
|
Driveline
|
shaft, selectable 4*4, front limited slip differential
|
Starting System
|
Electric
|
Ignition
|
DCDI
|
Max Speed
|
50 Miles h
|
Max Torque
|
23n.m - 4000rpm
|
Battery
|
12V-14Ah
|
Steering
|
Rack and pinion
|
| Brakes - Suspension - Chassis |
Frame
|
Steel Frame and Body
|
Front Suspension
|
Independent double wishbone
|
Rear Suspension
|
Independent double wishbone
|
Front Brakes
|
Disc Brake
|
Rear Brakes
|
Disc Brake
|
Brake Operation
|
Hand - Foot Brake
|
Front Tires
|
25?8-12
|
Rear Tires
|
25?10-12
|
Clutch
|
Automatic
|
Engine oil
|
SAE15W - 40SF
|
Gear oil
|
85W - 40
|
Fuel Capacity
|
3.5 gallons
|
| Controls - Safety |
Age Recommendation
|
10 Years old and above
|
Thumb Throttle (Y-N)
|
Y
|
Brake Pedal (Y-N)
|
Y
|
Remote Start (Y-N)
|
Y
|
Remote Engine stop (Y-N)
|
N
|
Kill Switch(Y-N)
|
N
|
Speed Governor (Y-N)
|
N
|
Light
|
Head lights, Signal lights, Tail lights.
|
| Capacities - Dimensions |
Weight Capacity
|
600lbs
|
Net Weight
|
603lbs
|
Gross Weight
|
670lbs
|
Length
|
82.7"
|
Width
|
47.6"
|
Height
|
47.2"
|
Ground Clearance
|
11"
|
|
|
|
|
|





|
|
