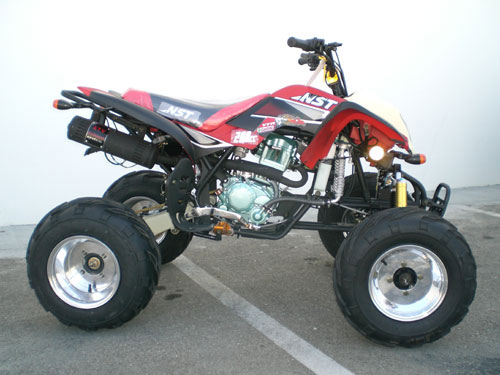

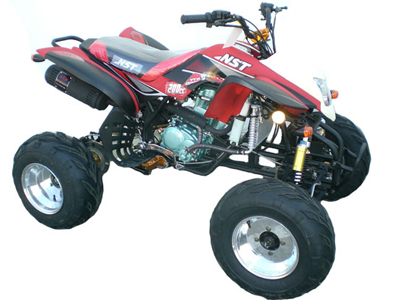

MFN-200-S7
Gas Quad
ATV
|
Displacement 200cc |
|
Starting from :
$000.00
|
Bashan Make
10 Inc Wheels
|

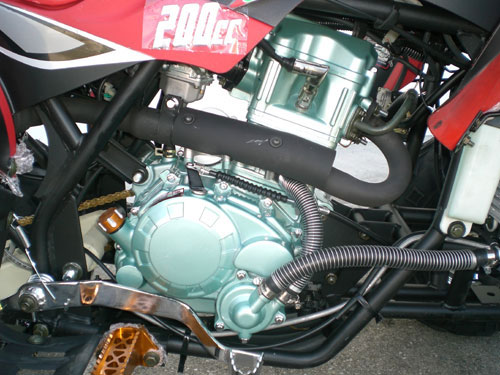

200 cc 4-stroke water cooled engine
Front and Rear Disc Brake System,
Electric Start
|
|
|
Call to order
: 718-766-5432 |
SPECIFICATIONS
|
Engine type
|
single cylinder, water-cooling, 4-stroke
|
Ignition mode
|
CDI
|
Compression proportion
|
9.2:1 |
Start mode
|
electric
|
Fuel tank capacity
|
4L
|
Transmission mode
|
chain
|
Power
|
9.5kW/7,500rpm
|
Max. torque
|
12.1N.m 6,000rpm
|
Min. ground clearance
|
100mm
|
Max. speed
|
80km h
|
Power source
|
12V, 9Ah
|
Transmission
|
4 gears with one reverse gear, manual clutch
|
Cylinder size
|
63.5 x 62.2mm
|
Engine oil
|
0.9L
|
Lubrication
|
press splash
|
Displacement
|
197ml
|
Parking trig
|
mechanical lock
|
Gas cylinder number
|
1
|
Front wheels
|
21x 7-10
|
Rear wheels
|
20 x 10-10
|
| Break type |
disc disc
|
Front hanging
|
double arm-swing
|
Rear hanging
|
integral
|
Product dimensions
|
1,680 x 1,115 x 1,120mm
|
Wheelbase
|
1,160mm
|
Height of seats
|
850mm |
Dry weight
|
167kg
|
Load capacity
|
105kg
|
Climbing ability
|
20°
|
Min. turning radius
|
2,650mm
|
Max. number of riders
|
1
|
|
|
|
